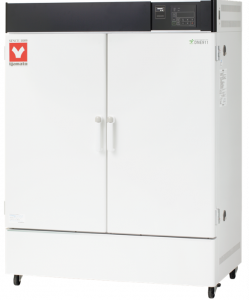

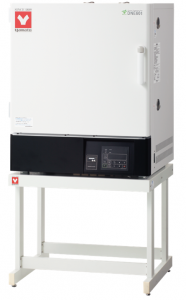

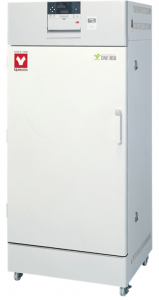

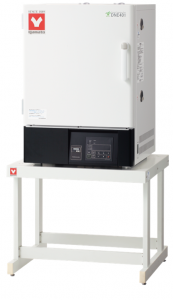

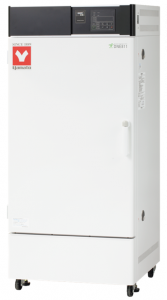

Forced convection oven- DNE Series
| Product Code | Model | Operating temp. range | Temp. adjustment accuracy | Temp. distribution accuracy | Max. temp. reaching time | Operating temperature range | Internal dimensions （W×D×H mm） | External dimensions （W×D×H mm） | Power supply | Weight |
| 212818 |  DNE401 |
Room temp. +20 to 210℃ | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 60 min. | – | 450×450×450mm | 580×645×860mm | AC115V 11A Single-phase |
63kg |
| 212819 |  DNE411 |
Room temp. +20 to 210°C | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 60 min. | – | 450×450×450mm | 580×645×860mm | AC220V 6A Single-phase |
63kg |
| 212824 |  DNE601 |
Room temp. +20 to 210°C | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 70 min. | – | 600×500×500mm | 730×695×910mm | AC115V 12A Single-phase |
77kg |
| 212825 |  DNE611 |
Room temp. +20 to 210°C | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 70 min. | – | 600×500×500mm | 730×695×910mm | AC220V 7A Single-phase |
77kg |
| 212857 |  DNE650 |
– | – | – | – | Room temp. +10°C to 260°C | 600×500×500mm | 770×696×995mm | AC100 to 120V 14 to 16.5A Single-phase |
90kg |
| 212881 |  DNE650V |
– | – | – | – | Room temp. +10°C to 260°C | 600×500×500mm | 770×696×995mm | AC100 to 120V 14 to 16.5A Single-phase |
90kg |

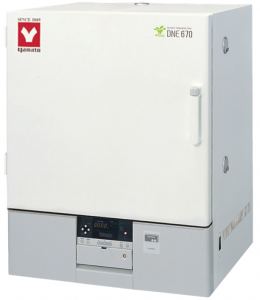

| 212858 |  DNE670 |
– | – | – | – | Room temp. +10°C to 260°C | 600×500×500mm | 770×696×995mm | AC200 to 240V 7 to 8.5A Single-phase |
90kg |
| 212882 |  DNE670V |
– | – | – | – | Room temp. +10°C to 260°C | 600×500×500mm | 770×696×995mm | AC200 to 240V 7 to 8.5A Single-phase |
90kg |
| 212826 |  DNE811 |
Room temp. +15 to 210°C | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 45 min. | – | 600×500×1000mm | 730×695×1660mm | AC220V 12A Single-phase |
92kg |
| 212859 |  DNE850 |
– | – | – | – | Room temp. +10°C to 260°C | 600×500×1000mm | 770×696×1760mm | AC200 to 240V 12.5 to 15A Single-phase |
130kg |
| 212883 |  DNE850V |
– | – | – | – | Room temp. +10°C to 260°C | 600×500×1000mm | 770×696×1760mm | AC200 to 240V 12.5 to 15A Single-phase |
130kg |
| 212827 |  DNE911 |
Room temp. +15 to 210°C | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 60 min. | – | 1090×500×1000mm | 1220×695×1660mm | AC220V 15A Single-phase |
185kg |
