PAMAS AS3

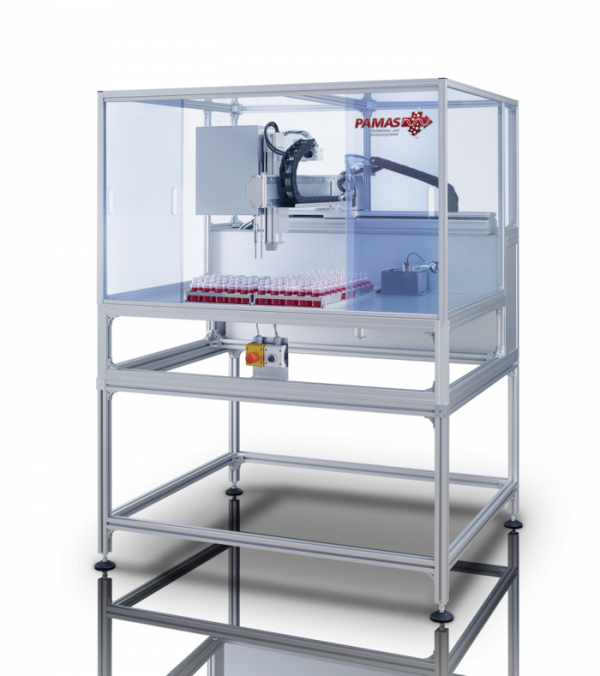

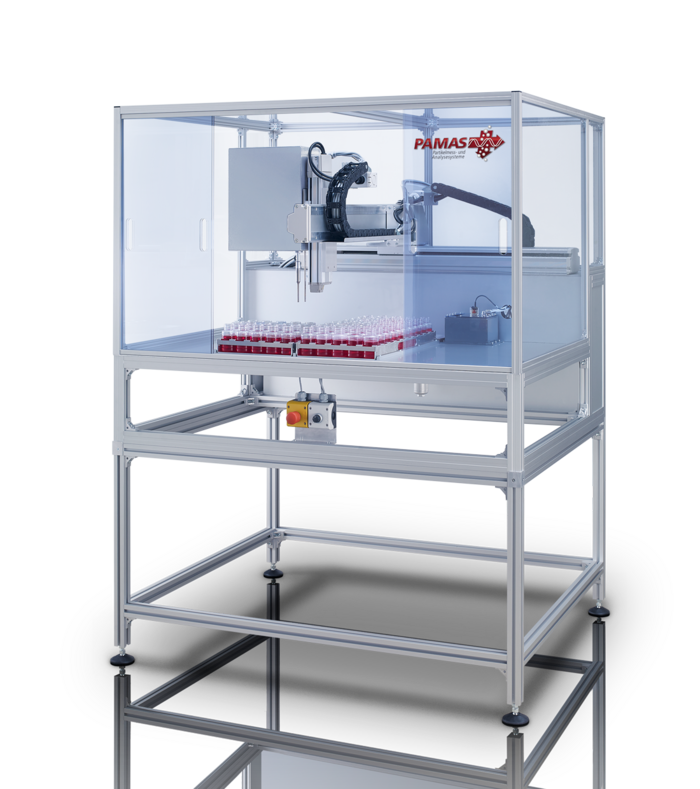

The PAMAS AS3 Autosampler is a fully automated laboratory particle counter for the unattended measurement of up to 600 samples per day.
Application
Fluid samples including but not limited to:
- Hydraulic Oil
- Turbine and insulation oils
- Gear oils
- Water based hydraulic fluids
- Phosphate ester based hydraulic fluids
- Diesel
- Kerosene
Product features
- Customizable footprint size due to modular structure
- Enclosed sample area to prevent cross contamination via airborne particulate
- Customizable measurement settings including agitation, pre-run and sample volume
- Unattended measurement of up to 600 samples per day
- Undiluted measurement of samples with up to VG 100. Depending on the dilution applied, higher viscosities are possible.
- Use of customized sample vessels with a max. height of 180 mm
- Integrated sample preparation by ultrasonication
- Sample dilution function
- Automatic cleaning of sampling probe and flowpath
- Automatic refill and filtration of dilution fluid/cleaning fluid
- Data transfer in universal format (.xml)
- LIMS integration possible
- PDF measurement reports
Standards and methods
| ISO 11171 | ISO 4406 | SAE AS4059 | ASTM D7647 | ISO 11500 |
Volumetric Sensor
PAMAS HCB-LD-50/50
Size range:
4–70 µm(c) (ISO 11171)
Max. particle concentration: 24,000 P/ml (Coincidence error of 7.8 %) at 25 ml/min.
Other sensors for larger particle sizes or higher concentrations are available on request.
