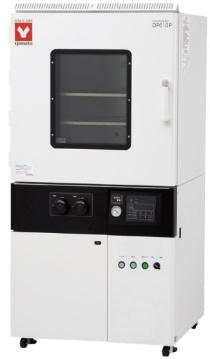

Vacuum drying oven – DP610P
Specifications
| Item Code | 212160 |
| Model | DP610P |
| Method | Vacuum drying by decompressed chamber direct heating |
| Operating pressure range | 101 to 0.1 kPa (760 to 1 Torr) at absolute pressure |
| Max. temp. reaching time | Approx. 100 min. |
| Interior/Exterior material | Stainless steel/Cold rolled steel plate with baked-on melamine resin finish |
| Heater | Mica heater, 3.15 kW |
| Observation window | Tempered glass and polycarbonate resin plate |
| Vacuum gauge | Bourdon tube type, 0 to 0.1 MPa (Gauge pressure) |
| Temp. control method | PID control by microprocessor |
| Additional functions | Calendar timer (max. 24 Hrs.), Integration time (max 65535 Hrs.), Time display, calibration offset, power discharge, CO2 discharge, heater consumption display, power failure stagnation mode, user configuration information |
| Heater circuit control | Triac zero-cross control |
| Operating temperature range | 40～200℃ |
| Temp. adjustment accuracy | ± 1.5°C (at 200°C) |
| Operation functions | Fixed temperature operation, auto-start operation, auto-stop operation, program operation ( 99 steps, 99 patterns repeat operation) |
| Temp. sensor | K-thermocouple (double sensor) |
| Safety countermeasures | Self diagnosis functions(Sensor, Heater, Triac, automatic overheating prevention), Independent overheating prevention, Key lock function, Electric leakage breaker |
| Shelf support step number/pitch | 4 steps/140mm |
| Exhaust port / Purge port | NW25 flange / Rc 1/4 |
| Accessories Shelf plate | Punched stainless steel, 2 pcs |
| Internal dimension （W×D×H mm） | 600×600×600mm |
| External dimension （W×D×H mm） | 820×819×1650mm |
| Remarks(dimensions) | 216L |
| Power Source | AC220V 16A Single-phase |
| Weight | 310kg |
